Type UI is standard flexible tubing.
Large diameter annular hose made of series 300 stainless steel with up to 2 layers of braid: unbraided (480/880), single braided (481/881), and double braided (482/882). Comprised of T321 (480 series) or T316 (880 series) hose with 300 series stainless braid for temperatures from cryogenic service up to 1500°F (815°C). Available in diameters from 2-1/2” to 12” (60-300mm) and suitable for full vacuum up to 670 psig (46 bar).
480 Large Diameter Hose
- T321 stainless steel hose
- Series 300 stainless steel braid
- Annular Construction
2-1/2” through 12”
Full vacuum up to 670 psig depending on size and braid configuration.
Cryogenic to 1500°F

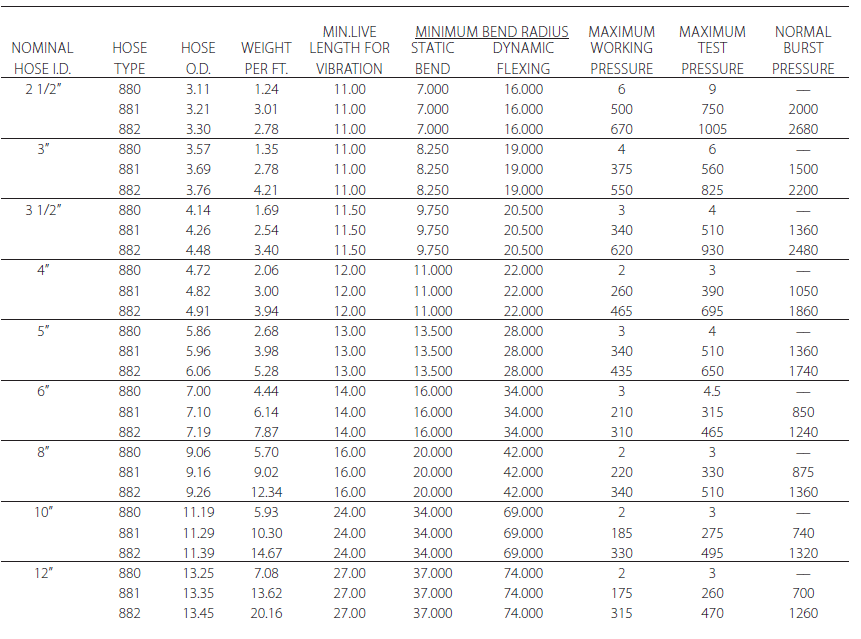

880 Large Diameter Hose
- T316 stainless steel hose
- Series 300 stainless steel braid
- Annular Construction
2-1/2” through 12”
Full vacuum up to 670 psig depending on size and braid configuration.
Cryogenic to 1500°F
